- Extend HDMI over a single CATx cable

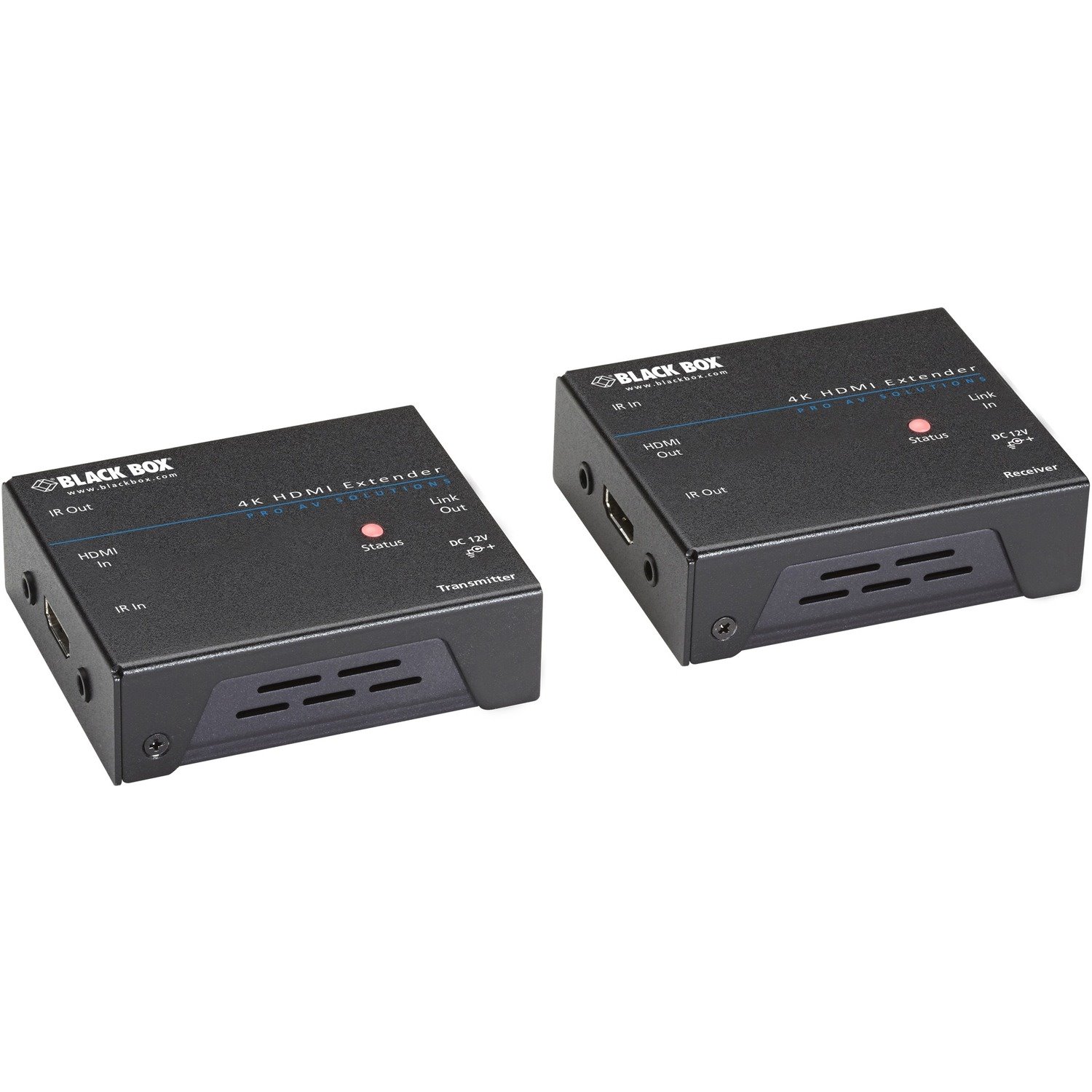

The 4K CATx Lite Extender uses CATx technology for extension. Distribute digital signage content or other HD video and audio over a single CAT5e/6 cable. The transmitter-receiver combo makes it easy to send digital full 1080p-quality video and audio plus IR and serial RS-232 control signals up to 230 feet (70 m) or 4K/UHD up to 131 feet (40 m).
- Optimal PC-to-screen performance
The 4K CATx Lite Transmitter and Receiver feature EDID copy function and are HDCP-compliant and Blu-ray ready.
- Lossless compression for HD extension
The 4K CATx Lite Extender transmits broadcast-quality video and audio as well as all common PC resolutions (XGA, SXGA, UXGA, WSXGA) up to 3840 x 2160 (Full HD, WUXGA, UHD) at 30 Hz.
- Simplified control
The extender supports CEC passthrough and source device control via a built-in IR extender function (an IR emitter and IR receiver are included). IR commands received in the vicinity of the display extend back to the source device. This way, a receptionist stationed near a screen, for instance, can use an HDTV's remote controller to change settings on a source device in another room.
- 4K CATx Lite Extender Kit is great for:
- Hospitality (hotels and conference rooms)
- Digital signage (airports and shopping malls)
- Surveillance cameras
- Whole-home networking
- Point-to-point consumer application
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Condition
- New
- Product Type
- Video Extender Transmitter/Receiver
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 1
- Number of Output Devices Supported
- 1
- Maximum Operating Distance
- 229.66 ft
- Video
- Graphics Modes
- 4K
- Maximum Video Resolution
- 3840 x 2160
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 2
- Number of HDMI Inputs
- 1
- Number of HDMI Outputs
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Physical Characteristics
- Transmitter Weight (Approximate)
- 1 lb
- Miscellaneous
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
