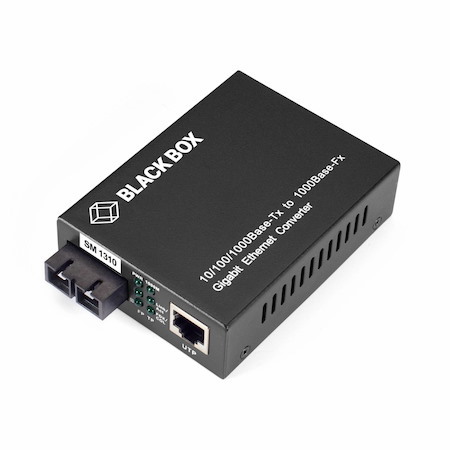

10/100/1000BASE-TX to 1000BASE-LX
Meet the connectivity needs of your deployment. This media converter converts 10/100/1000BASE-TX to 1000BASE-LX. Includes broadcast storm control, flow control, and CRC error checking.
Auto-negotiation
Completely compatible with IEEE802.3/802.3u auto-negotiation function.
Complies with Standards
? The media converter meets EN60950, UL62368, and EN62368 standards.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Line
- Pure Networking
- Packaged Quantity
- 1
- Product Type
- Transceiver/Media Converter
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Double Diamond Warranty (Standard)
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of SC Ports
- 1
- Media & Performance
- Media Type Supported
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported
- Single-mode
- Fiber Optic Wavelength
- 1310 nm
- Maximum Distance Supported
- 10 km
- Fiber Optic Cable Core/Cladding Specification
- 9/125 µm
- 8.3/125 µm
- 10/125 µm
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-TX
- 1000Base-LX
- Power Description
- Power Source
- Power Adapter
- Plug/Connector Type
- Barrel
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Standalone
- Rack-mountable
- Height
- 1"
- Width
- 3.7"
- Depth
- 2.7"
- Weight (Approximate)
- 11.20 oz
- Miscellaneous
- Package Contents
- Pure Networking Transceiver/Media Converter
- 1 x 5-VDC Power Adapter with (US, EU, UK and AU Power Clips)
- Application/Usage
- Network
- Certifications & Standards
- FCC Class B
- CE
- IEEE 802.3
- IEEE 802.3U
- IEEE 802.3x
- 802.3ab
- EN60950
- UL62368
- EN62368
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
