Each of the 8 buttons can be user programmed, using the included software, to send IR, relay control, or bi-directional RS-232 and RS-485 commands simultaneously to control third-party devices.

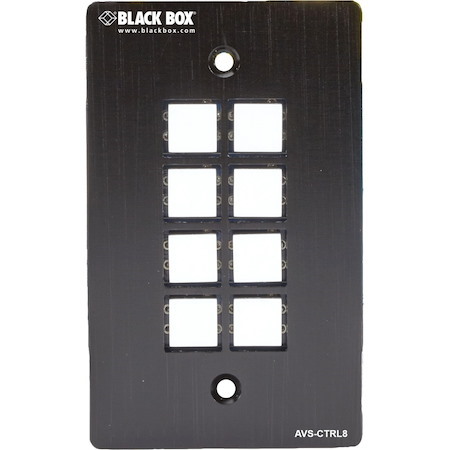

The panel is designed in a high quality black metal finish with LED back lit buttons, and fits into a standard single gang outlet box.
- General Information
- Manufacturer
- Black Box Corporation
- Manufacturer Website Address
- http://www.blackbox.com
- Brand Name
- Black Box
- Product Type
- A/V Control Panel
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
Extended Double Diamond™ Warranty Available (3 Additional Years)
- Technical Information
- Connectivity Technology
- Wired
- Physical Characteristics
- Color Family
- Black
- Product Color
- Sleek Black
- Product Material
- Metal
- Form Factor
- Wall Plate
- Wall Mountable
- Gang Box Mount
- Height
- 1.1"
- Width
- 2.8"
- Depth
- 4.5"
- Weight (Approximate)
- 5.28 oz
- Miscellaneous
- Additional Information
Compliance: FCC
General- Humidity: 10 to 90%, noncondensing
- Interface: Programming Port: USB or RS-232 Serial Control Port: RS-232 Band Rate and Protocol: 9600 band, 8 data bits, 1 stop bit, no parity Frequency Response: 20 Hz to 20 kHz
- Operating Temperature: -4 to 158° F (-20 to 70° C)
- Power: Supply: 100 to 240 VAC, 50/60 Hz; Consumption: 1 W
- Storage Temperature: -4 to 158° F (-20 to 70° C)
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
