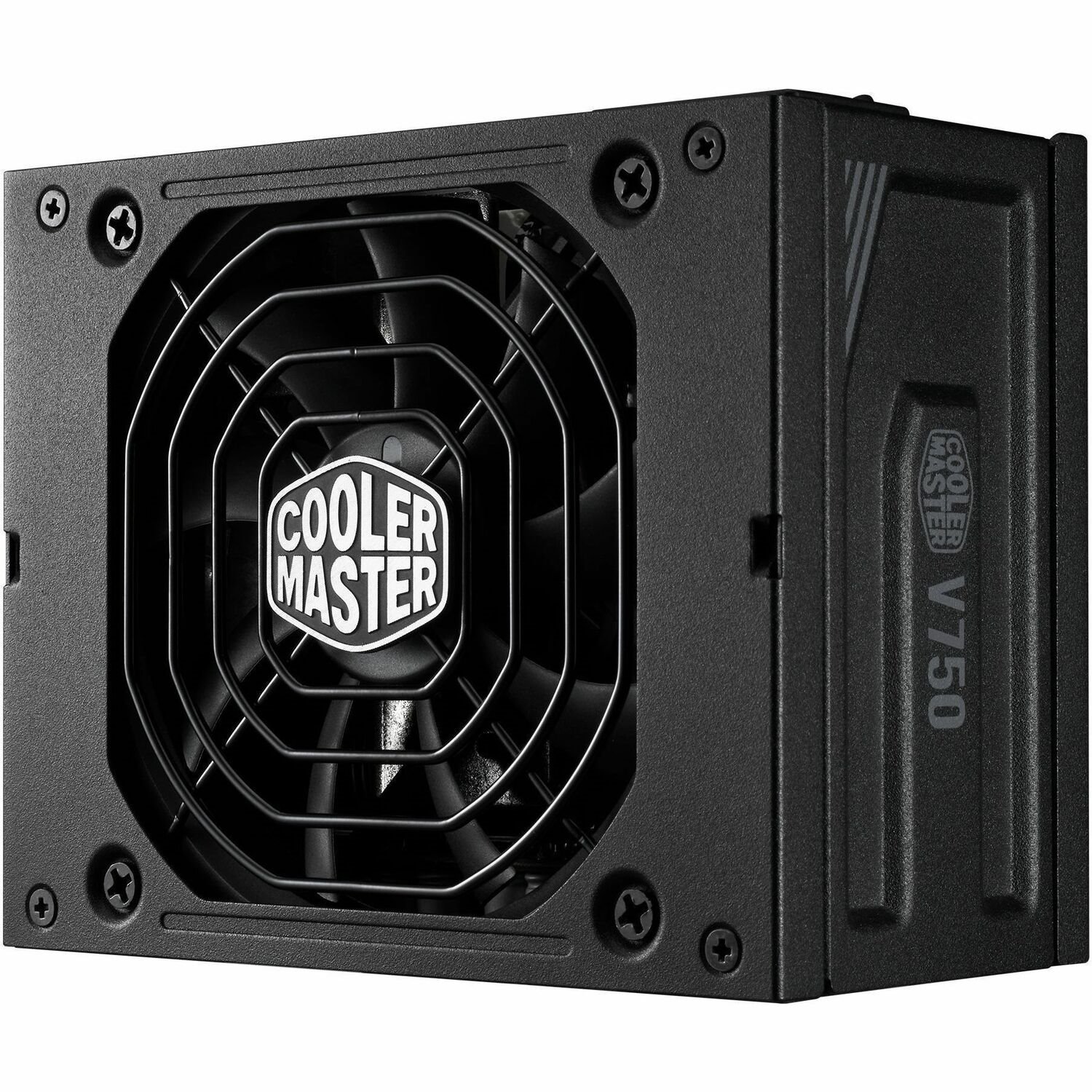

Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
ATX 3.0 Support & a Durable 90-degree 12VHPWR Cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
Flexible Compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
100% Japanese Capacitors
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.
80 PLUS Gold Certified | Fully Modular Cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
PSU Calculator
Need help choosing the right power supply for your system? Try out our comprehensive and easy-to-use PSU calculator.
- General Information
- Manufacturer
- Cooler Master Co., Ltd
- Manufacturer Website Address
- http://www.coolermaster-usa.com
- Brand Name
- Cooler Master
- Product Series
- V SFX
- Product Type
- Power Supply
- Warranty
- Limited Warranty
- 10 Year
- Technical Information
- Specification Compliance
- SFX12V v3.42
- ATX 3.0
- Efficiency
- 90%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Fan Bearing Type
- Fluid Dynamic Bearing
- Fan Diameter
- 92 mm
- Protection Type
- Over Power
- Over Voltage
- Over Temperature
- Over Current
- Short Circuit
- Under Voltage
- Surge & Inrush Protection
- Modular
- Yes
- Modular Type
- Fully Modular
- Reliability
- MTBF
- 100000 Hour
- Power Description
- Input Voltage
- 120 V
- 230 V
- Output Power
- 750 W
- Input Frequency
- 50-60Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 8
- PCI Express Connector
- Yes
- PCI Express Version
- 5.0
- Number of (6+2 pin) PCI Express Power Connectors
- 4
- Number of (4+4 pin) CPU Power Connectors
- 1
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Physical Characteristics
- Form Factor
- Plug-in
- SFX
- Height
- 2.5"
- Width
- 4.9"
- Depth
- 3.9"
- Miscellaneous
- Certifications & Standards
- TUV
- cTUVus
- CE
- BSMI
- FCC
- CCC
- EAC
- RCM
- CB
- UKCA
- Energy Efficiency Certification
- 80 Plus Gold
- Energy Efficiency Compliance
- Energy-related Products Directive Lot 3 (ErP Lot 3)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- China Restriction of Hazardous Substances (China RoHS)
