- General Information
- Manufacturer
- In Win Development, Inc
- Manufacturer Website Address
- http://www.in-win.com.tw
- Brand Name
- In Win
- Product Series
- Z
- Product Type
- Computer Case
Tool-Free Installation and Easy Maintenance
Tool-free front panel, drive bays and I/O slots.
Configured 6 Drive Bays
5.25" x 2, 3.5" x 3 and 2.5" x 1 drive bays for expandability of future upgrade.

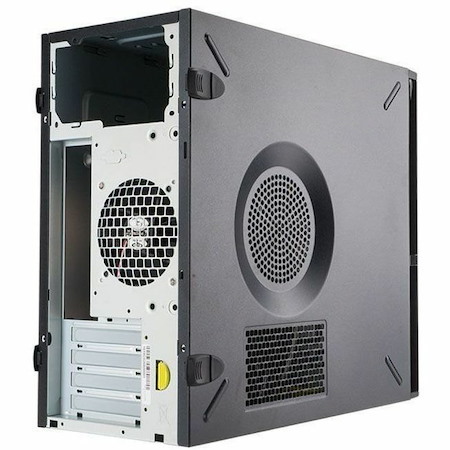

Side Panel Clips
The patented tool free installation side panel clips.
Folded Edge
No sharp edges or debris for safe installation
Stamped Motherboard Support
Easy MB installation. No MB standoff required.
Tool-Free
- Screwless Front Panel
- Screwless Side Panels
- Screwless 5.25" Drive Bays
- Screwless 3.5" Drive Bays
- Screwless PCI-E Expansion Slots
3.5"/2.5" Drive Bays
- 3.5" Drive Bays x 3
- Internal 2.5" x 1
Excellent Thermal Solution
- Intel Certified TAC 2.0
- Qualified for TAC 2.0,a mass ventilation hole side panel design that strengthens thermal efficiency and cools down the entire system.
- 80mm or 90mm Rear Fan (Optional)
Front Ports
- USB 2.0 x 2
- HD Audio
- Optional USB 3.0 x 2
Optional
- ? eSATA
- Chassis Intrusion Switch
- 3.5" to 2.5" HDD / SSD Bracket Supports 2.5"x 2
- Optional 60 mm Fan x 1 (60 x 60 x 10 mm, 2500rpm, 20dB Fan, 4 Pin Power Connector)
- Technical Information
- Motherboard Supported
- Micro ATX
- Mini ITX
- Number of Fans Supported
- 1
- Fan Size Supported
- 2.36"
- Features
- Padlock Cover
- Kensington Lock
- Bays
- Number of External 5.25" Bays
- 2
- Number of External 3.5" Bays
- 2
- Number of Internal 3.5" Bays
- 1
- Number of Internal 2.5" Bays
- 1
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 2
- USB Port Details
- 2 x USB 2.0
- Front USB
- Yes
- Physical Characteristics
- Product Material
- SECC
- Steel
- Metal
- Cooler Type
- Fan Cooler
- Form Factor
- Mini-tower
- Maximum CPU Cooler Height
- 5.87"
- Maximum GPU Length
- 13.23"
- Height
- 14.2"
- Width
- 7.4"
- Depth
- 16.2"
