A SMARTER WAY TO WORK.

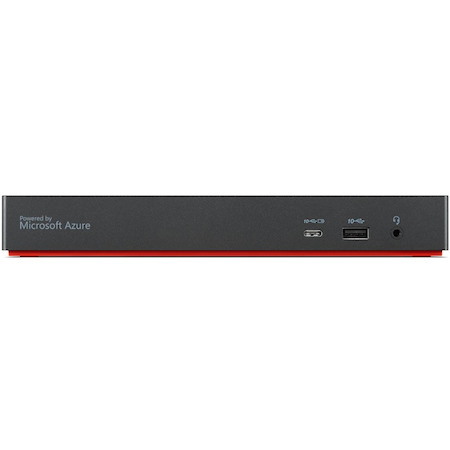

The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.
Features include:
- One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease. - Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
- Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.
- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook/Desktop PC
- Number of Displays Supported
- 4
- Screen Mode Supported
- 4K
- 8K
- Supported Resolutions
- 3840 x 2160
- 7680 x 4320
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB Type C
- Thunderbolt 4
- Total Number of USB Ports
- 5
- Number of USB Type-A Ports
- 4
- Number of USB Type-C Ports
- 1
- USB Type-A
- Yes
- USB Type-C
- Yes
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of DisplayPort Outputs
- 2
- DisplayPort
- Yes
- DisplayPort Version
- 1.4
- Headphone/Microphone Combo Port
- Yes
- Number of HDMI Outputs
- 1
- Number of HDMI Ports
- 1
- HDMI
- Yes
- HDMI Version
- 2.1
- Thunderbolt
- Yes
- Thunderbolt Ports Quantity
- 2
- Software
- Operating System Supported
- Windows
- Power Description
- Maximum Power Supply Wattage
- 100 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Red
- Height
- 1.18"
- Depth
- 3.15"
- Weight (Approximate)
- 1.01 lb
- Miscellaneous
- Package Contents
- ThinkPad Universal Thunderbolt 4 Smart Dock
- 135W Adapter
- 1 x Power Cable
- Standard Thunderbolt Cable
- Compatibility
Lenovo ThinkPad Notebook
- Brand Compatibility
- Lenovo
