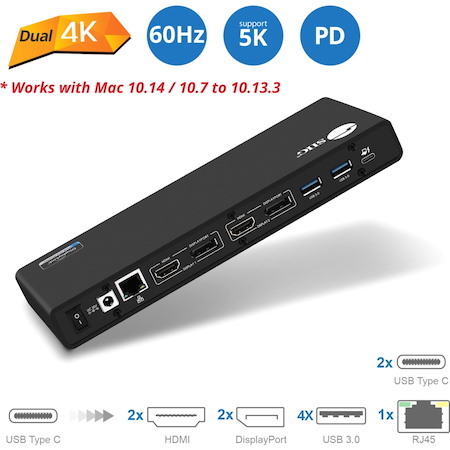

Advanced docking station adds DisplayPort, HDMI, USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptop
- Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
- Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor - Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
- USB-C PD Charging - Supports up to 60W power output to charge your laptop
Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology - Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
- Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
- Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
- OS Compatibility - Supports various Windows and Mac computers
Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier. - Enterprise Features: Wake on LAN, MAC Address Pass-Through and PXE Boot
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook
- Number of Displays Supported
- 2
- Screen Mode Supported
- 4K
- 5K
- Supported Resolutions
- 3840 x 2160
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Host Interface
- USB 3.1 Type C
- Audio Line In
- Yes
- Audio Line Out
- Yes
- Total Number of USB Ports
- 7
- Number of USB 3.2 Gen 1 Type-A Ports
- 4
- USB Type-C
- Yes
- USB Type-C Detail
- 2 x USB 3.2 Gen 1 Type-C, up to 5Gbps data transfer rate, 5V/900mA
- Network (RJ-45)
- Yes
- Number of RJ-45 Ports
- 1
- Number of DisplayPorts
- 2
- DisplayPort
- Yes
- Microphone
- Yes
- Number of HDMI Ports
- 2
- HDMI
- Yes
- Thunderbolt
- Yes
- USB Power Delivery
- Type-C Up to 60W
- Software
- Operating System Supported
- Windows
- macOS
- Power Description
- Maximum Power Supply Wattage
- 100 W
- Power Source Type
- AC
- Physical Characteristics
- Height
- 1.02"
- Width
- 3.15"
- Weight (Approximate)
- 12.32 oz
- Miscellaneous
- Package Contents
- USB 3.1 Type-C Dual 4K Docking Station with Power Delivery
- Power Adapter (DC 20V/5A)
- USB-C (M) to USB-C (M) Cable
- Driver CD
- User Reference Guide
- Compatibility
- Windows Compatibilty:
- 10
- 8
- 7
Mac Compatibilty:
- 10.14
- 10.13.3 to 10.7
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
