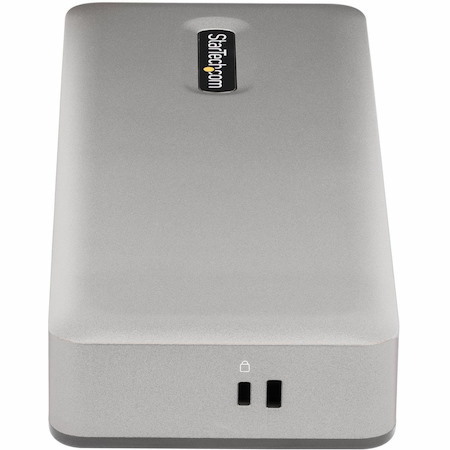

This USB Type-C Docking Station expands the connectivity of a USB-C laptop, enabling support for dual monitors and adding seven downstream USB ports. The USB-C Dock features driverless installation. It's compatible with USB-C and Thunderbolt 3/4 computers and works with Windows and ChromeOS computers. The Dock features a locking USB-C host port and includes a USB-IF Certified 3.3ft (1m) locking host cable.
High-Performance Dual Video via MST
The docking station provides DisplayPort 1.4, HDMI 2.0b and VGA video outputs with support for dual or single video output configurations, creating a powerful workstation. It supports DP 1.4 Alt Mode with MST allowing for uncompressed video performance up to dual 2560x1440 at 60Hz, or single-4K 60Hz on the DisplayPort and HDMI video outputs. Connect a DisplayPort monitor and choose between HDMI or VGA for the second display. This provides users with the flexibility to enjoy dual-monitor functionality with different connectivity options, based on preference or available monitors.
Video performance, such as resolution and refresh rate across both monitors, is dependent upon the host computer and it's video controller. A source device with support for DisplayPort 1.4 and MST is required to achieve maximum performance. Please review the below chart and the specifications of your computer and displays to determine the expected video performance.
Platform
Single Monitor
Resolution
Dual Monitor
Resolution
DisplayPort 1.4 (Intel 11th Generation and Higher)
1x 4K 60Hz
2x 2560 x 1440p 60Hz
DisplayPort 1.2 (Intel 10th Generation and Below) 1x 4K 30Hz 2x 1920x1200/1080p 60Hz
Notes:
- All specified resolutions support RGB color representation (4:4:4)
- Computers with discrete graphics controllers may achieve higher performance
- Chart assumes combination of DisplayPort and HDMI video outputs, maximum VGA resolution is 1920x1200 in any configuration
Full-Featured Docking Station with Built-in 7-Port USB Hub
Connect the docking station to the host computer's USB 3.2 Gen 1 (5Gbps) Type-C port to access a wide range of port connectivity and features, including seven downstream USB ports with a variety of speeds and connector types. The docking station features:

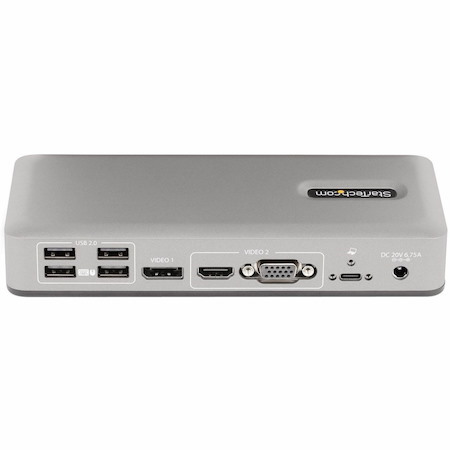

- 1x DisplayPort 1.4 port for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
- 1x HDMI 2.0b port with HDR for connecting an Ultra-High Definition monitor with support for resolutions up to 4K 60Hz.
- 1x VGA port for connecting a Full High-Definition monitor with support for resolutions up to 1080p/1920x1200.

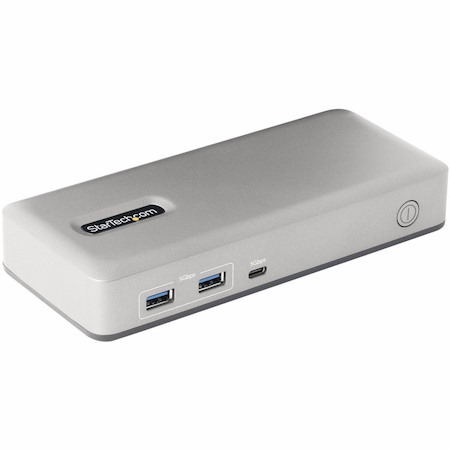

- 2x USB-A (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
- 4x USB-A (USB 2.0 480Mbps) ports for USB HID devices, such as a keyboard and mouse.
- 1x USB-C (USB 3.2 Gen 1 5Gbps) ports for connecting high speed USB peripherals, such as SSD storage.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Docking Station
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Connectivity Technology
- Wired
- Device Supported
- Notebook/Desktop PC/Monitor/Mouse/Keyboard
- Features
- Power Delivery Pass-through
- Number of Displays Supported
- 2
- Screen Mode Supported
- 4K @ 60Hz
- Full HD
- WUXGA
- QHD
- Supported Resolutions
- 3840 x 2160
- 1920 x 1080
- 1920 x 1200
- 2560 x 1440
- Maximum Data Transfer Rate
- 640 MB/s
- Interfaces/Ports
- Host Interface
- USB 3.2 (Gen 1) Type C
- Total Number of USB Ports
- 7
- Number of USB 2.0 Ports
- 4
- Number of USB 3.2 Gen 1 Type-A Ports
- 2
- Number of USB Type-A Ports
- 6
- Number of USB Type-C Ports
- 1
- USB Type-A
- Yes
- USB Type-C
- Yes
- USB Type-C Detail
- 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps)
- VGA
- Yes
- Number of VGA Outputs
- 1
- Number of DisplayPorts
- 1
- DisplayPort
- Yes
- DisplayPort Version
- 1.4
- Number of HDMI Ports
- 1
- HDMI
- Yes
- HDMI Version
- 2.0b
- USB Power Delivery
- 85W
- Software
- Operating System Supported
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- ChromeOS
- Power Description
- Maximum Power Supply Wattage
- 135 W
- Power Source Type
- Power Adapter
- Physical Characteristics
- Product Color
- Space Gray
- Height
- 1.20"
- Width
- 7.30"
- Weight (Approximate)
- 9.70 oz
- Miscellaneous
- Package Contents
- Docking Station
- 1 x 3.3ft [1m] USB-C Host Cable (Screw Locking)
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
- Kensington Security Slot
- Yes
- Compatibility
Compatible with USB-C and Thunderbolt 3/4 computers
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- TAA Compliant
- Yes
