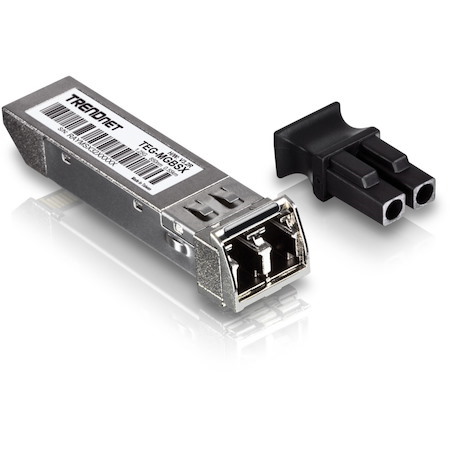

TRENDnet SFP Multi-Mode LC Module, Up To 550m (1800 Ft), Mini-GBIC, Hot Pluggable, IEEE 802.3z Gigabit Ethernet, Supports Up To 1.25 Gbps, Lifetime Protection, Silver, TEG-MGBSX

  • Part: 1023394
$26.00

Availability

In Stock

  • Transmission distance of up to 550m (1804 ft.)
  • Supports data rates of up to 1.25Gbps
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low Electromagnetic Interference (EMI) design
  • Supports 850nm multi-mode network transmissions
  • Duplex LC optical interface
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
  • TRENDnet LIFETIME PROTECTION: This module comes with lifetime manufacturer protection.

    • TRENDnet's SFP Multi-Mode LC Module, model TEG-MGBSX, are compatible with standard SFP slots found on network switches and fiber media converters. The Multi-Mode SFP LC module is equipped with a duplex LC fiber connection interface, and supports gigabit multi-mode fiber connections for long distance networking applications.

    Fiber Applications

    Long distance fiber networking for manufacturing, business parks, and school campus applications.

    Fiber Mode/Distance

    Multi-Mode transceiver spans distances up to 550m (1804 ft.) at gigabit speeds.

    Compatibility

    Hot-pluggable with an MSA compliant SFP slot, and compatible with fiber cables with LC-type duplex connectors.

    More from the Manufacturer

  • General Information
    • Manufacturer
    • TRENDnet
    • Manufacturer Website Address
    • http://www.trendnet.com
    • Brand Name
    • TRENDnet
    • Product Condition
    • New
    • Product Type
    • SFP (mini-GBIC)
  • Warranty
    • Limited Warranty
    • 3 Year Lifetime

  • Technical Information
    • Application/Usage
    • Data Networking
  • Interfaces/Ports
    • Total Number of Ports
    • 1
    • Connector Type
    • LC
    • Interfaces/Ports Details
    • 1 x LC Duplex 1000Base-SX
  • Media & Performance
    • Media Type Supported
    • Optical Fiber
    • Fiber Mode Supported
    • Multi-mode
    • Ethernet Technology
    • Gigabit Ethernet
    • Network Technology
    • 1000Base-SX
    • Maximum Distance Supported
    • 0.55 km
  • Power Description
    • Input Voltage
    • 3.3 V DC
  • Physical Characteristics
    • Form Factor
    • Hot-pluggable
    • Height
    • 3"
    • Width
    • 3"
    • Depth
    • 5"
    • Weight (Approximate)
    • 0.39 lb
  • Miscellaneous
    • Additional Information
      • Wavelength: 850nm
      • Die Cast Metal Housing for low EMI
      • Pout (dBm): -9.5 ~ 0.0
      • Sensitivity: -18
      • Power: 8.5

      Application:

      • Switch to Switch Interface
      • High Speed I/O for File Server
      • Channel Extender, Data Storage
    • Compatibility
      • This Module is for industry standard SFP slot
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • NDAA Compliant
    • Yes
