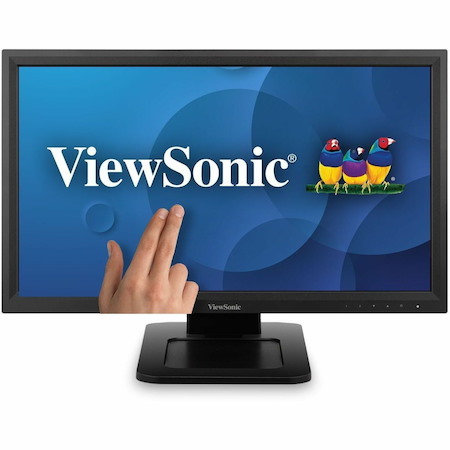

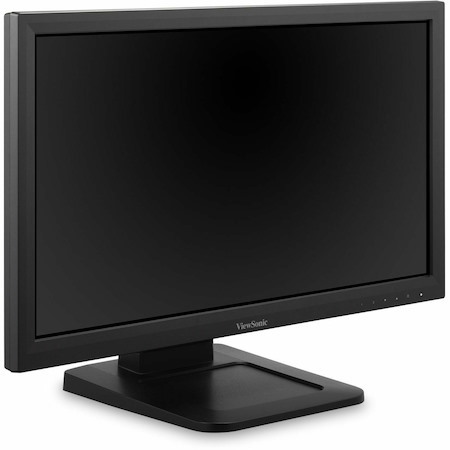

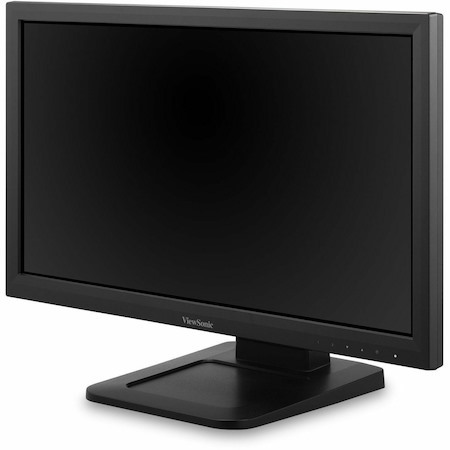

Featuring a robust 22" touchscreen, the ViewSonic® TD2211 touch display is ideal for use in retail, POS and commercial environments.
Each display comes equipped with resistive touch technology, making it responsive to hands, gloves and styluses alike.
The TD2211 combines Full HD resolution with a 20M:1 dynamic contrast ratio to deliver crystal clear images.

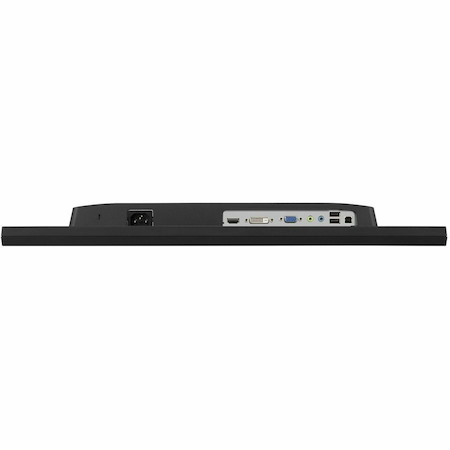

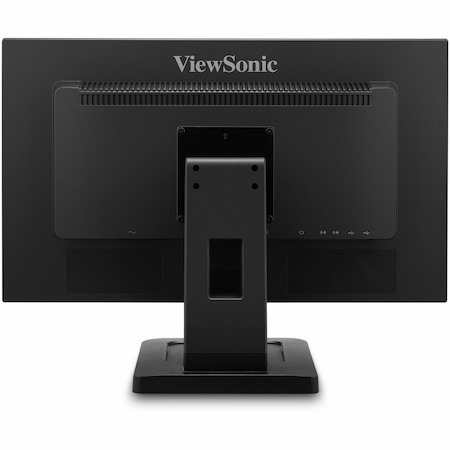

Enjoy flexible connectivity options including HDMI, VGA, DVI and USB ports as well as a VESA-compatible mount design that makes it easy to transform your device into a wall mounted display.
- General Information
- Manufacturer
- ViewSonic Corporation
- Manufacturer Website Address
- http://www.viewsonic.com
- Brand Name
- ViewSonic
- Packaged Quantity
- 1
- Product Type
- LED Touchscreen Monitor
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Screen Size Class
- 22"
- Viewable Screen Size
- 21.5"
- Screen Mode
- Full HD
- Panel Technology
- MVA technology
- Response Time
- 6.80 ms
- Response Time Details
- 6.8ms GTG
- Aspect Ratio
- 16:9
- Horizontal Viewing Angle
- 178°
- Vertical Viewing Angle
- 178°
- Mount Type
- Wall Mountable
- Backlight Technology
- LED
- Features
- Anti-glare
- On-screen Display (OSD)
- Cable Lock Slot
- Water Resistant
- Dust Resistant
- Horizontal Frequency
- 24 kHz to 82 kHz - DVI-D
- 24 kHz to 82 kHz - D-sub
- 24 kHz to 84 kHz - HDMI 1.4
- Vertical Frequency
- 50 Hz to 75 Hz - D-sub
- 50 Hz to 75 Hz - DVI-D
- 50 Hz to 75 Hz - HDMI 1.4
- Stand Adjustments
- Tilt
- Glass Hardness
- 3H
- Video
- Maximum Resolution
- 1920 x 1080
- Standard Refresh Rate
- 75 Hz
- Color Supported
- 16.7 Million Colors
- Native Contrast Ratio
- 3,000:1
- Dynamic Contrast Ratio
- 20,000,000:1
- Brightness
- 250 Nit
- Audio
- Speakers
- Yes
- Touchscreen Information
- Touchscreen Type
- Resistive
- Number of Simultaneous Touchpoints
- 1
- Interfaces/Ports
- DVI
- Yes
- HDMI
- Yes
- USB
- Yes
- VGA
- Yes
- Number of HDMI Inputs
- 1
- Total Number of HDMI Ports
- 1
- Number of USB Ports
- 3
- Number of USB Type-B Ports
- 1
- Number of VGA Ports
- 1
- Audio Line In
- Yes
- DVI-D
- Yes
- Audio Line Out
- Yes
- Number of Audio Line Out Ports
- 1
- Number of HDMI 1.4 Ports
- 1
- Built-in Devices
- Built-in Devices
- USB Hub
- Environmental Conditions
- Operating Temperature Range
- 32°F (0°C) to 104°F (40°C)
- Operating Humidity Range
- 20% to 90% (Non-condensing)
- Power Description
- Operating Power Consumption
- 26.80 W
- Maximum Power Consumption
- 26.80 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- VESA Mount Compatible
- Yes
- VESA Mount Standard
- 100 x 100
- Height
- 12.1"
- Width
- 20.4"
- Depth
- 2.2"
- Height with Stand
- 14.84"
- Width with Stand
- 20.43"
- Depth with Stand
- 9.45"
- Weight (Approximate)
- 7.72 lb
- Weight with Stand (Approximate)
- 9.70 lb
- Miscellaneous
- Package Contents
- TD2211 22" LCD FHD Touch Screen Monitor (VGA, HDMI, DVI, and USB)
- Power Cable
- HDMI Cable
- USB Type A/B cable
- Audio Cable
- Quick Start Guide
- Energy Star
- Yes
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Certification
- China Environmental United Certification Center (CEC)
- Electronic Product Environmental Assessment Tool Silver (EPEAT Silver)
- Energy Efficiency Certification
- ENERGY STAR 8.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
