- General Information
- Manufacturer
- Wilson Electronics
- Manufacturer Website Address
- http://www.weboost.com
- Brand Name
- WilsonPro
- Product Type
- Antenna

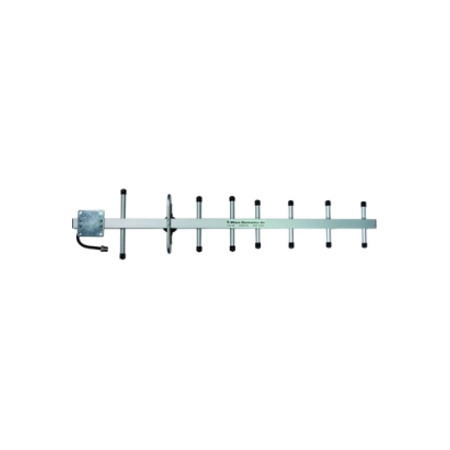

Wilson's 13 dB 800 MHz Yagi Antenna will collect the cell tower signal and send it through the cable to an amplifi er or directly to the cell phone or cellular data card. When the cell phone or cellular data card transmits, the signal is transferred to an amplifi er or directly to the antenna and broadcast back to the cell tower.
- Warranty
- Limited Warranty
- 90
- Technical Information
- Directivity
- Directional
- Frequency Band Type
- UHF
- Operating Frequency Range
- 806 MHz to 939 MHz
- Antenna Gain (Isotropic)
- 13 dBi
- Impedance
- 50 Ohm
- Polarization
- Horizontal/Vertical
- Interfaces/Ports
- Number of Connectors
- 1
- Connector Type
- N-Type
- Physical Characteristics
- Height
- 32.50"
- Form Factor
- Yagi
- Weight (Approximate)
- 1.31 lb
- Miscellaneous
- Package Contents
- 301111 Yagi Cellular Antenna
- 2 x U-Bolts
- 2 x Pipe Brackets
- 4 x 1/4" Split-Lock Washers
- 4 x 1/4"-20 Nuts
- Additional Information
- Mounts on pipe with 0.5 inch to 1.5 inch diameter
- Number of Elements: 8
- Material: Aluminum
