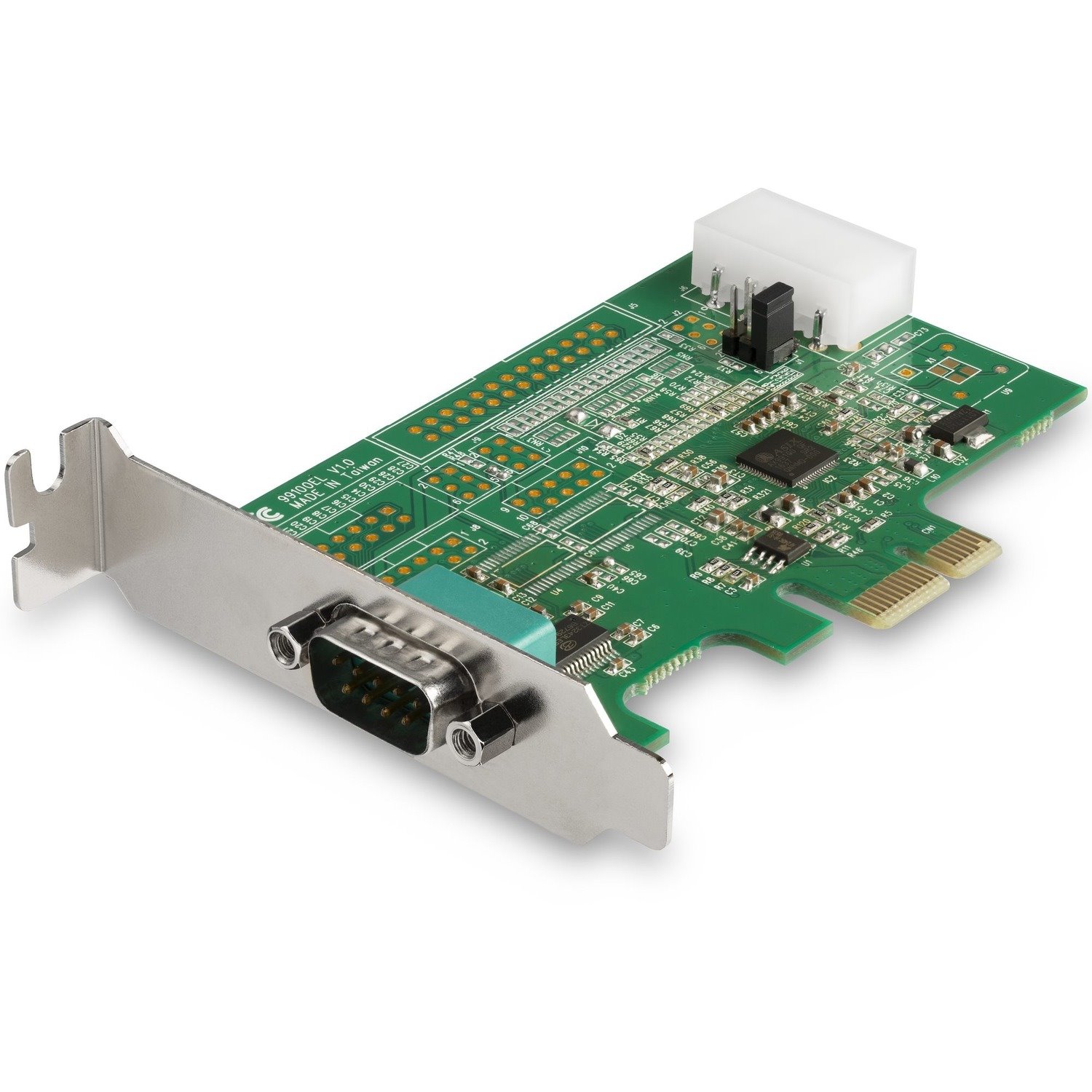

This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
- Compatible with industry standard 16950 UART
- Supports max baud rate of up-to 921.4Kbps
- Provides 5/12V power output on Pin 9 when external power is connected
- 128-byte depth FIFO per transmitter and receiver
- Supports 9, 8, 7, 6, 5 data bits
- Asix AX99100 chipset
- PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
- General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Packaged Quantity
- 1
- Product Type
- Serial Adapter
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Host Interface
- PCI Express x1
- UART Type
- 16950
- Platform Supported
- PC
- Linux
- Interfaces/Ports
- Number of Serial Ports (External)
- 1
- Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Height
- 5.9"
- Width
- 2.6"
- Length
- 3.9"
- Weight (Approximate)
- 1.60 oz
- Miscellaneous
- Package Contents
- 1-Port PCI Express Serial Card with 16950 UART - Low-Profile
- 1 x Full-Profile Bracket
- 1 x User Manual
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- Taiwan
