Buy StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16550 UART - Low Profile - Windows/Linux

Part: 1018821

$50.00

Availability

In Stock

General Information
- Manufacturer
- StarTech.com
- Manufacturer Website Address
- http://www.startech.com
- Brand Name
- StarTech.com
- Product Type
- Serial Adapter

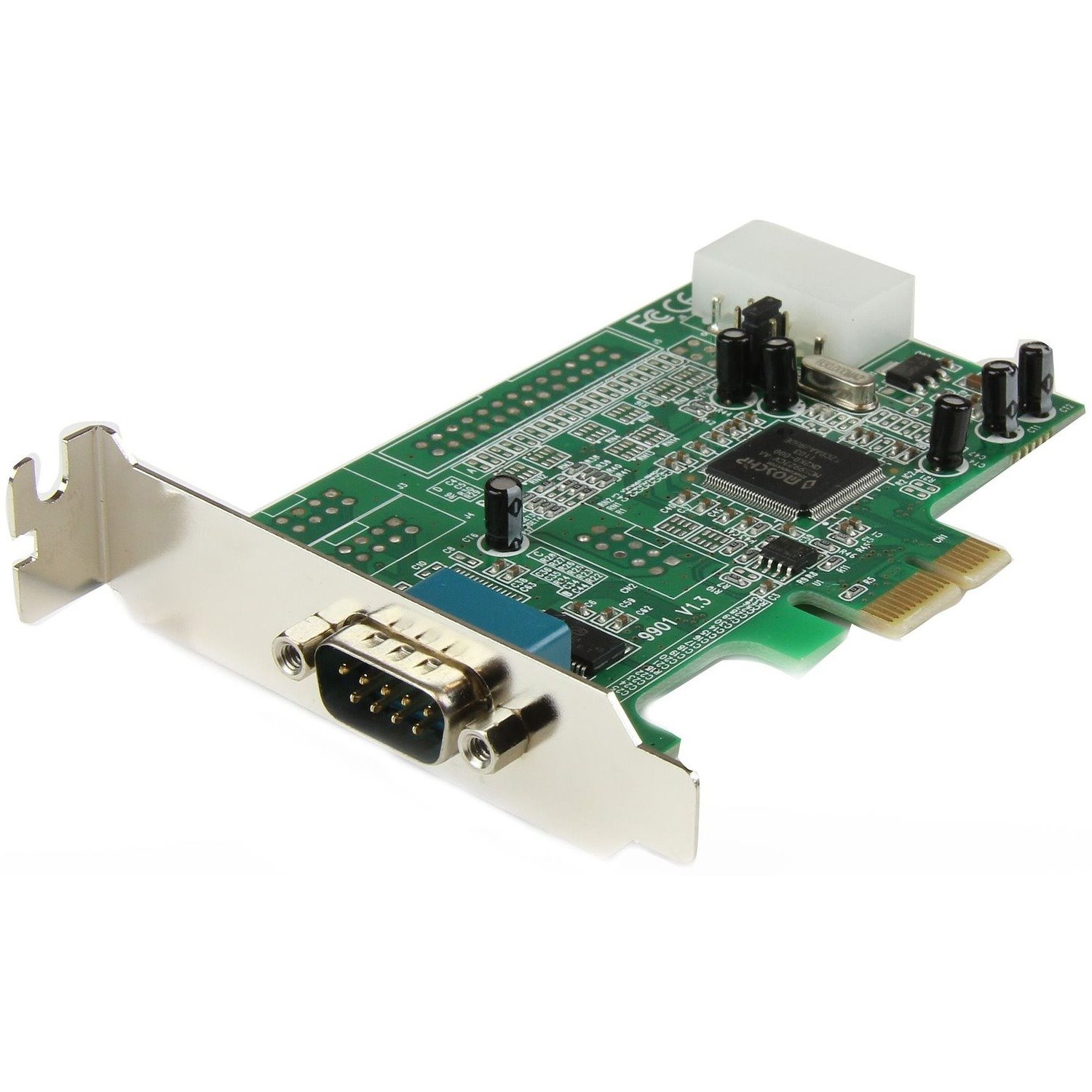

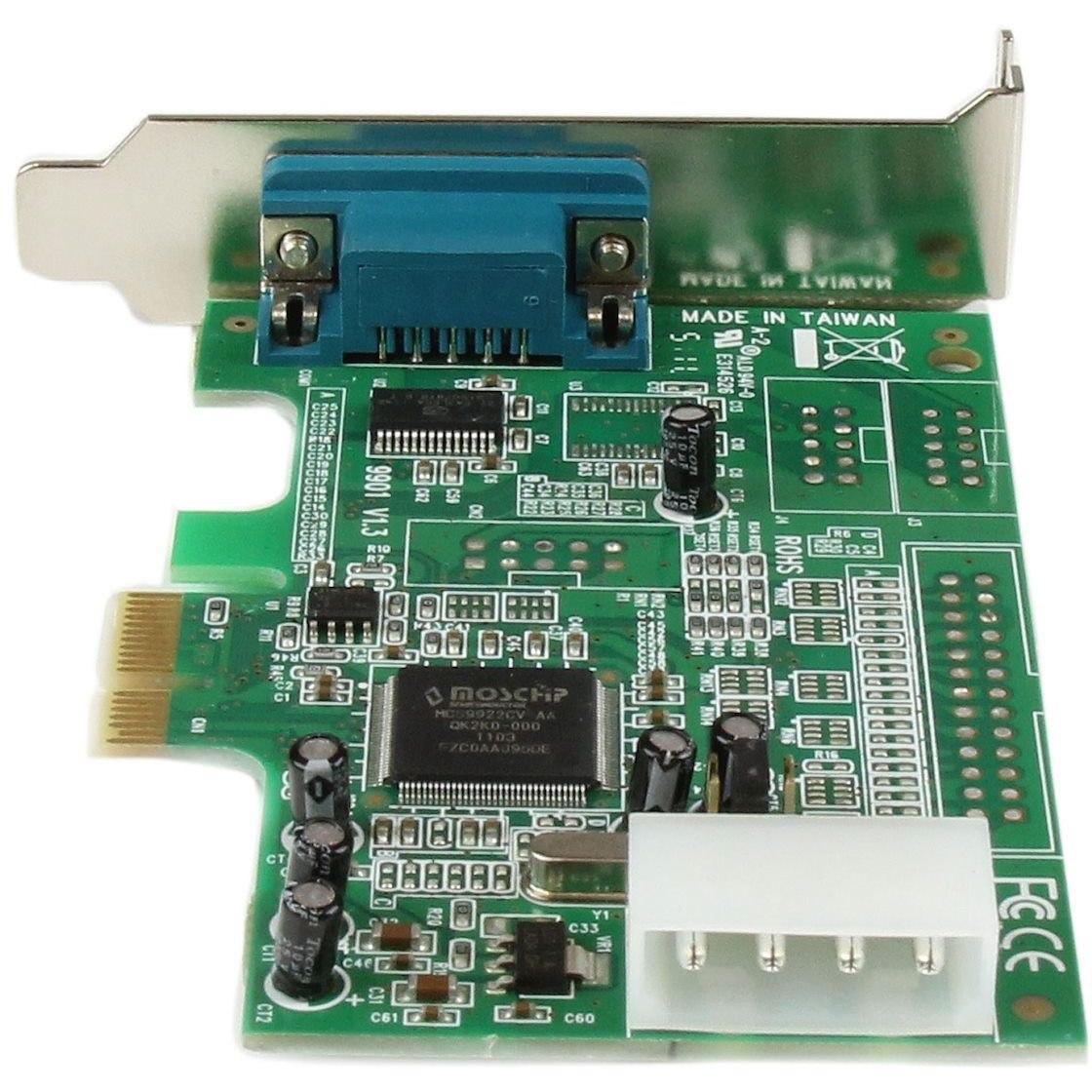

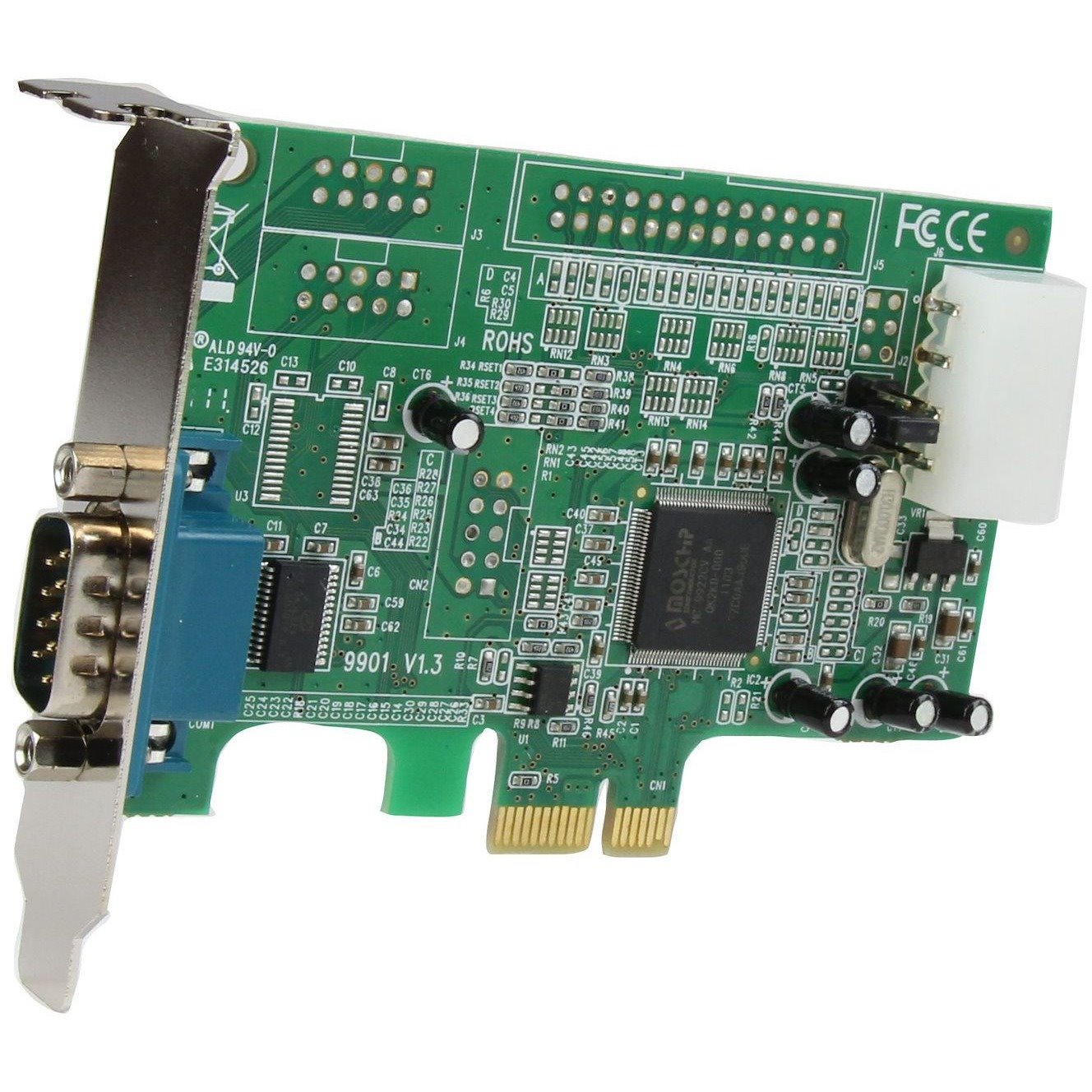

The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX1S552LP card.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Warranty
- Limited Warranty
- 2 Year

Technical Information
- Host Interface
- PCI Express x1
- Data Transfer Rate
- 460kB/s
- UART Type
- 16550
- Platform Supported
- - Mac
  - Linux
  PC

Interfaces/Ports
- Number of Serial Ports (External)
- 1

Physical Characteristics
- Form Factor
- Plug-in Card
- Card Height
- Low-profile
- Height
- 0.8"
- Width
- 3.1"
- Length
- 4.1"
- Weight (Approximate)
- 1.60 oz

Miscellaneous
- Package Contents
- - 1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
  - Full Profile Bracket
  - Driver CD
  - Instruction Manual
- Additional Information
- - Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  - Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  - Easy to install and use with full step-by-step instructions saving time and hassle.
  - Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS
  - Windows Server® 2012, 2008 R2, 2003
  - Mac OS® 10.4 and later (tested up to 10.10)
  - Linux kernel 2.6.x
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
